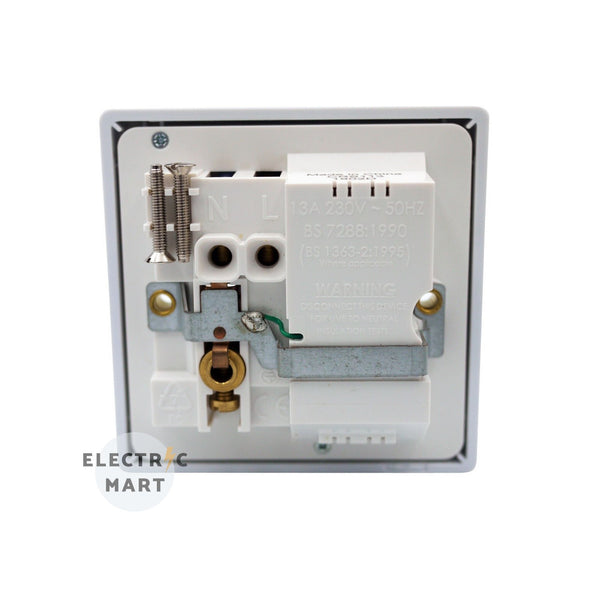

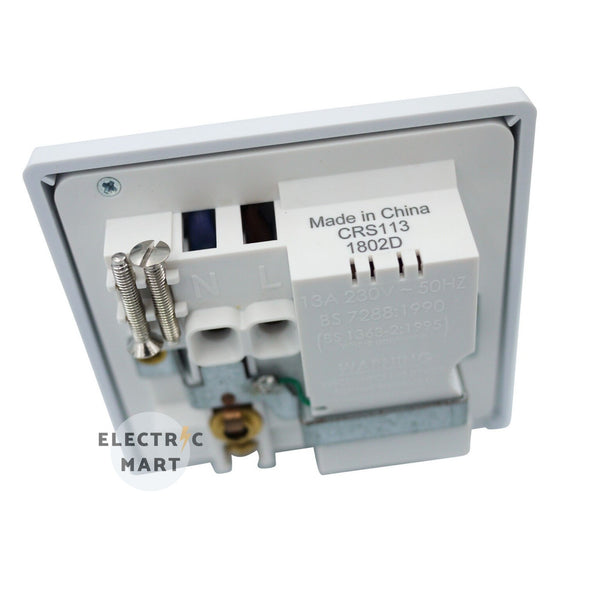

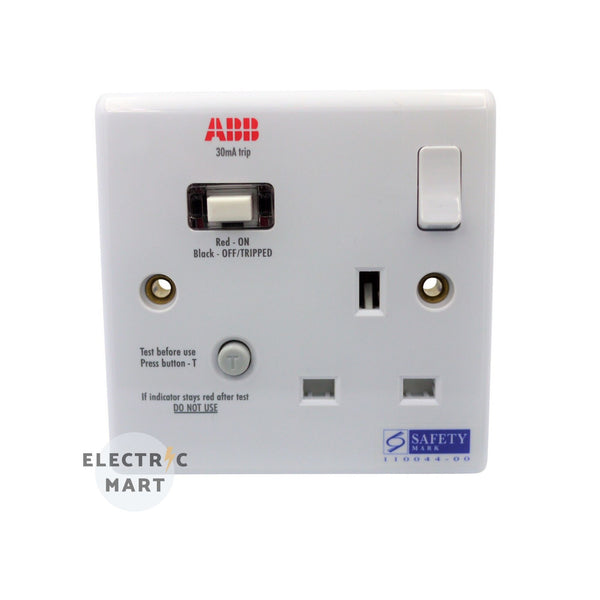

ABB CRS113 13A RCD Single Switch Socket Outlet, 1 gang / 1x13A SSO with 30mA Residual Current Device

Regular price $109.99

Tax included.

Safety

  • Built-in test button
  • Continue to protect - RCD protection
  • Loss of supply earth - RCD protection
  • Reversed polarity (supply) - RCD protection
  • Earth leakage within range - trip


Specifications

  • Standard - BS 7288
  • Contact status indicator - red flag incorporated in reset button
  • Operating voltage / frequency - 230V + 15% - 10% / ~50Hz
  • Load current - 13A resistive
  • RCD trip current - 30mA nominal
  • Trip speed - not more than 40ms at 5 times rated tripping current
  • Circuit fault breaking capacity - 1500A
  • Earth fault breaking capacity - 250A
  • Socket-outlet with electric shock protection

  • Excellent discrimination by fast disconnection and low-leakage current sensitivity
  • Easy to use - two operation with neon and status indicator button
  • Simple to replace existing-outlets
  • Capable of being switched on-load
  • Build-in test button
  • Reversal polarity
