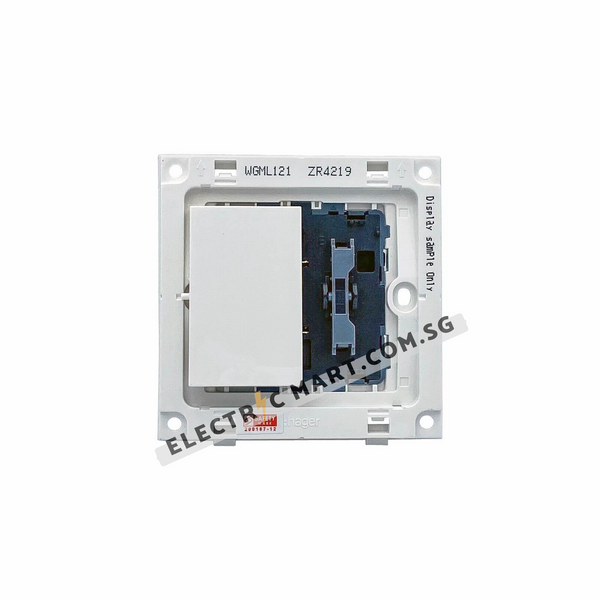

Hager Muse WGML121 / WGML122 16AX 2 Gang 1 Way / 2 Way Switch
- Complies with IEC 60669-1 CB certificate
- 'AX' rated - No need to derate for fluorescent loads
- Supplied with M3.5 x 27mm long fixing screws
- Capacity of each terminal: 3 x 1.5 mm2 or 2 x 2.5 mm2
- Two way switches can be wired either 1 way or 2 way

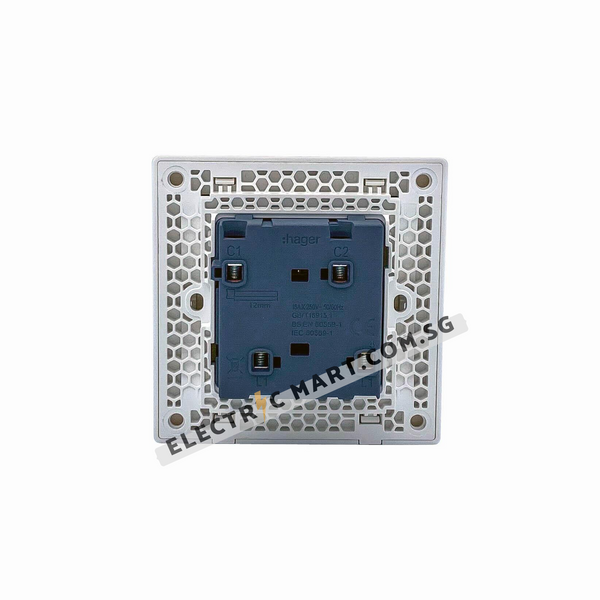

- Terminal markings denote: L1 = one way, L2 = two way, C = common
- Material: Polycarbonate
- Dimensions: 86mm x 86mm
