Technical characteristics
| Unit |
PCE |
| EAN |
3.25062E+12 |
| Sales status |
3C |
| Colour syntax: Colour | grey |
| Surface appearance | glossy |
| Colour syntax: surface | glossy |
| Depth | 53.2 mm |
| Designation syntax: Core designation/function | socket outlet |
| Frequency | 50;60 Hz |
| Height | 86 mm |
| Rated current | 13 A |
| Protection index IP | IP20 |
| Colour | grey |
| IK protection code against mecanical impacts | sonstige |
| Material | Steel |
| Overvoltage protection | No |
| Fixing mode | surface-mounting |
| Number of modules | 0 |
| Nominal voltage | 250 V |
| Number of socket outlets switchable | 1 |
| Protection classes/types | IP20__PROTECTION-SYMBOL.EPS |
| Rated voltage | 220/230 V AC |
| Special power supply | No special power supply |
| Fixing type | With screws |
| Type of surface treatment | Epoxy |
| Component | with 2 fixing screws M3.5 x 20 mm and M3.5 x 30 mm each |
| Cover | Full cover plate |
| Imprint | without imprint |
| Installation mode | for surface-mounted housing ; for surface mounting |
| Protection | Enhanced contact protection |
| Wiring | with earth connection |
| Type of connection | screw |
| Width | 86 mm |

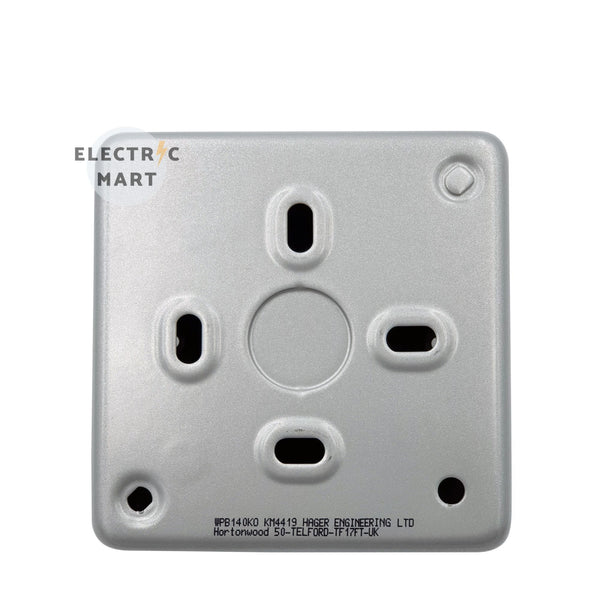

- 1 Gang Double Pole Switched Socket & Back Box with Knockouts
- Colour: Grey
- Full cover plate
- Epoxy surface treatment
- Protection index: IP20
- with 2 fixing screws M3.5 x 20 mm and M3.5 x 30 mm each
